Fan coil unit

Beautiful appearance
Made of high-quality galvanized steel plates, all the plates are processed by molds, featuring an attractive appearance and precise fit, effectively ensuring product consistency. The water collection tray is formed by one-time integral stamping processing, and its surface is covered with high-quality flame-retardant insulation material to prevent surface condensation.

Excellent design
The surface cooler adopts a large elbow tube sleeve with corrugated double flanged hydrophilic aluminum fins, which are tightly combined by mechanical tube expansion and have high heat transfer efficiency. The counter-flow piping method enables more thorough heat exchange per unit area of the surface cooler.

Reliable operation
Each surface cooler has undergone pressure leak testing. The inlet and outlet water pipes are made of forged brass structure. Reliable and durable; It adopts high-quality domestic brand dedicated motors, with B-class insulation and self-lubricating bearings, ensuring smooth operation and a long service life. The fan adopts an ultra-wide-angle volute and a multi-blade centrifugal impeller without welding. Each unit has undergone strict dynamic and static balance tuning, ensuring smooth operation and low noise.

It has a flexible structure and strong versatility

The lower and return air are of a universal structure. No special consideration is needed for selection, and they can be freely installed on site. The left and right connection pipes of the coil can be adjusted on site.

Intelligent control
According to customer needs, various temperature controllers can be selected to achieve intelligent control of the unit.

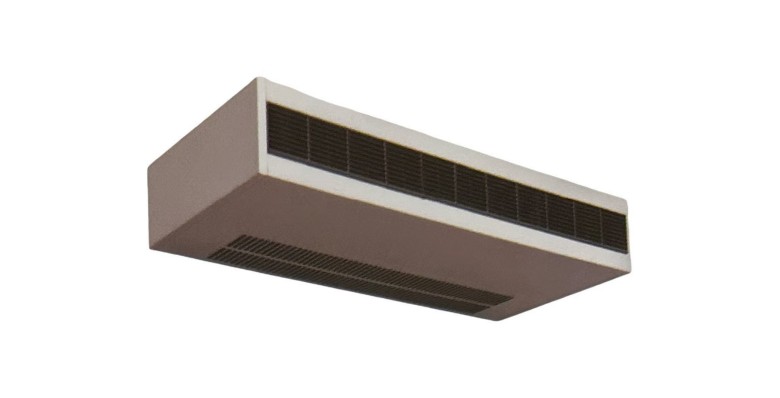

FP-WM horizontal exposed series

It can be ideally suspended at any position under the ceiling, not occupying any indoor space, and is easy to install. The shell is treated with electrostatic spraying, which can match the interior decoration. It is suitable for the renovation of air conditioning projects in old buildings, which can reduce pipelines and save costs.

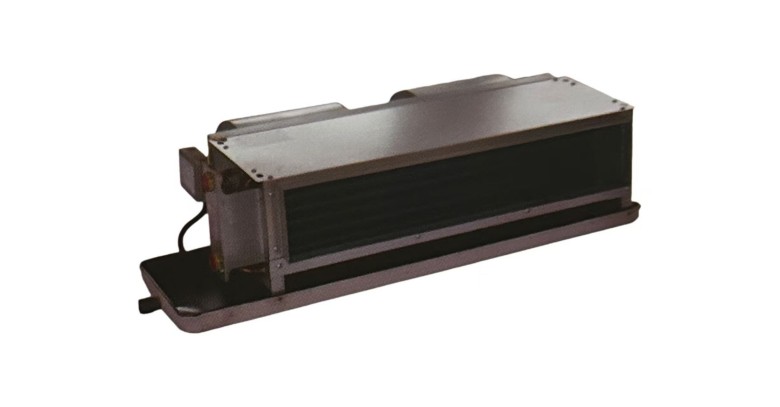

FP-WA Horizontal Concealed Installation Series

With a particularly low profile, it can be ideally placed inside the ceiling. Combined with interior decoration and equipped with air outlets, it is an ideal air conditioning device for hotels, restaurants, offices, etc.

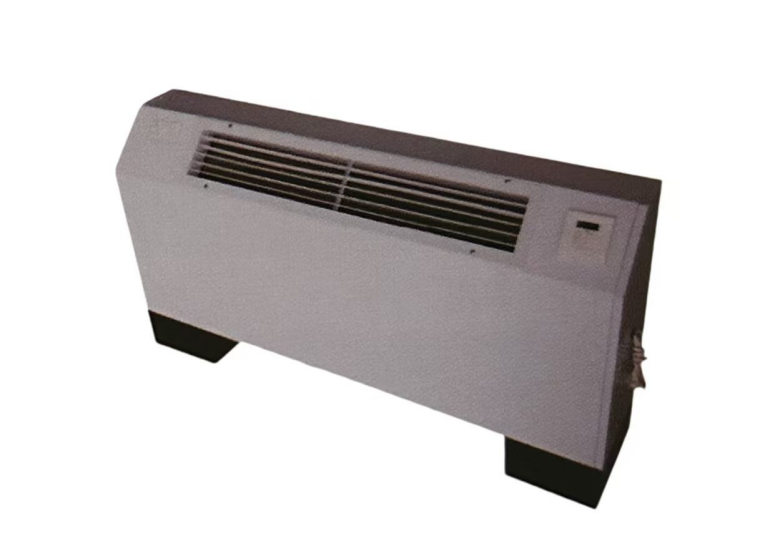

FP-LM vertical exposed series

The surface of this unit is treated with electrostatic spraying, featuring elegant color and beautiful appearance. It can be directly placed on the indoor floor to match the interior decoration. It is easy to disassemble, assemble and maintain, and has reliable performance.

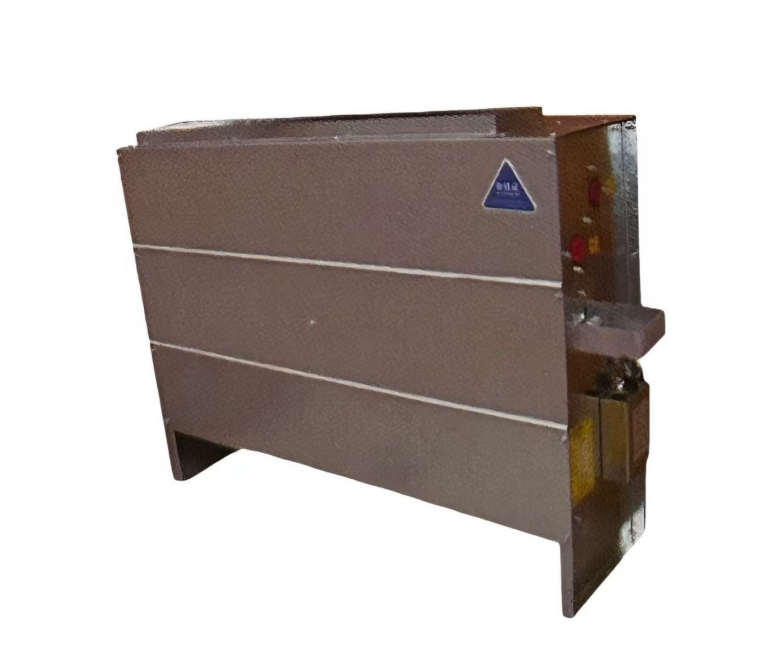

FP-LA Vertical Concealed Installation series

This model has a relatively thin body and does not occupy effective space. Its thickness is only 230mm. It can be placed under Windows, inside walls or in recesses with decorative panels. It has two air outlet forms: top air outlet and front air outlet. It is suitable for places such as meeting rooms, halls or gymnasiums.

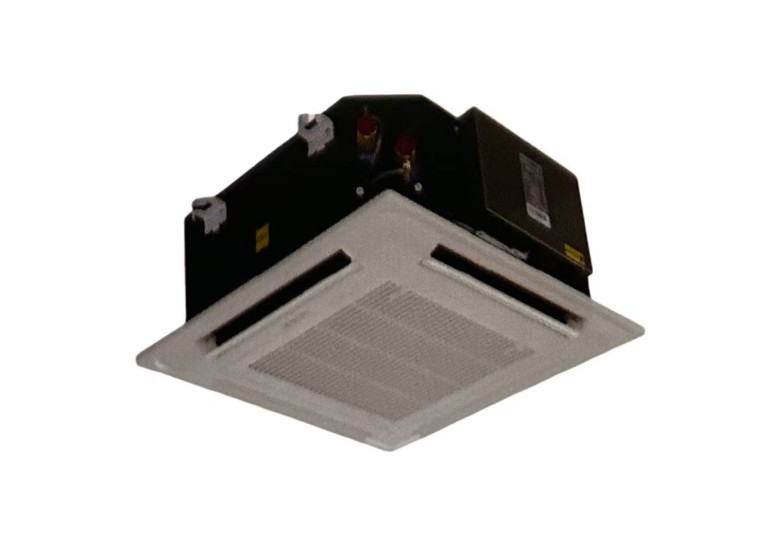

FP-KM Cassette exposed Series

This unit can be ideally placed inside the ceiling. When combined with the interior decoration, only the air outlet is exposed outside the ceiling. The air outlet is aesthetically pleasing, does not take up much space, and is easy to maintain.

1、Cooling capacity conditions of the unit: Dry bulb temperature 27℃, wet bulb temperature 19.5℃, inlet water temperature 7℃, temperature difference between inlet and outlet water 5℃.

2、The heating capacity operating conditions of the unit: dry bulb temperature 21℃, inlet water temperature 60℃, and the water supply volume is the same as the cooling capacity operating condition.

3、The working pressure of the unit is 1.6Mpa.

4、Piping direction: Facing the air outlet, if the water inlet, outlet and condensate outlet are on the left, it is a left type; otherwise, it is a right type.
